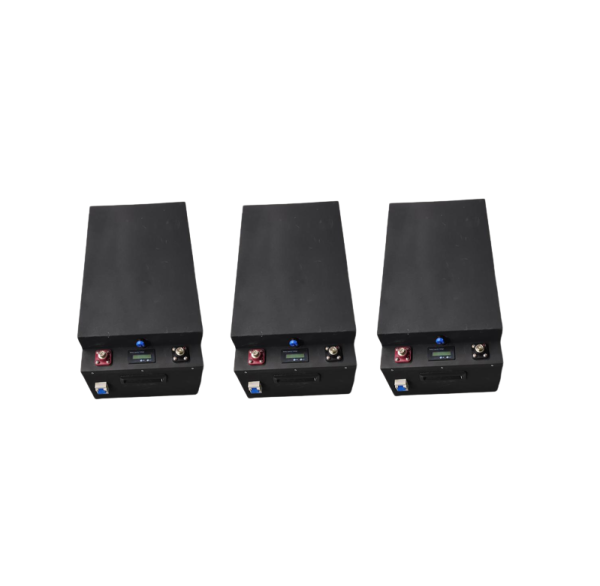

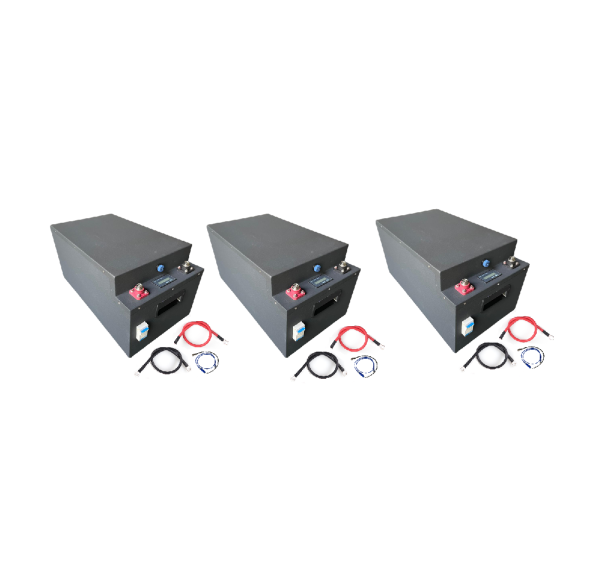

This System Consists of THREE x 48 Volt 200 Amp Hour LIFEP04 Lithium Batteries constructed using 3.2V LIFEP04 Lithium Cells, 51.2V Actual Voltage, Safe for use in parallel up to 6 batteries for higher capacity systems, Each battery has a true 200 Amp Hour Capacity at 51.2V, 10.24 kWh, 150A Continuous Discharge (each battery), 30kWh total capacity, Each 200Ah battery has its own Smart Battery Management System (Smart BMS) with PC Connectivity and temperature protection that physically stops charge / discharge when temperatures are our of acceptable range, (1) communication cable and (1) red + (1) black connection cable (3 cables total) is included with each battery, Weight 195 – 210 lbs each depending on final options, Black or White Standard Colors, Each battery’s metal case dimensions are 570(L) x 390(W) x 240(H) mm, Imported, Stock Image Shown, custom cases available. Due to the weight of the 200Ah battery delivery time is 45 days.
BATTERY FEATURES
Low Temp and High Temp Shutdown Protection
SMART BMS with Communication via RS485
Safe to Connect Up to 8 Batteries in Parallel (1600Ah!)
Rugged Front Mount Screw in Terminals
Our batteries were engineered by the best and most experience battery engineers in the world and are the building block for your battery system, fewer batteries mean fewer connections with less efficiency loss and fewer potential fail points. Our battery solutions have the most improvements over time and are much better than stacking a bunch of inferior 100A batteries and trying to keep all those BMS in sync! A 30kWh Battery System using Specialized Batteries battery will require only TWO batteries, instead of 6 or more like competing brands. It’s a no brainer!
[TOP NAME-BRAND CELLS]
The most important part of your lithium battery investment is the battery cells; we use bankable brands with warranty that can be honored anywhere in the world that you can really count on many years ahead. Beware of competitors using generic components that give long term warranties that are still unproven. Count on SPECIALIZED batteries with CATL, EVE and CALB cells inside. These top brands usually carry UL Certificates and their own warranty from the manufacturer.
[SUPERIOR BMS]
The Smart BMS in all Specialized Power Batteries offers easy PC Connectivity (cable and program included) for troubleshooting and monitoring. The BMS Protects from Over-Charging, Over-Discharging, Overload, Short-Circuit, General Overload and Low/High Temperature Protection. If there is any problem with your battery its easy to connect and find the EXACT cell causing an issue making Specialized Batteries easy to service. The BMS PROGRAM shows Battery capacity, Battery Voltage, Battery current (Amps), Battery State of Charge (SOC), Battery state of Health (SOH), Battery Status, Individual Cell Voltage, Temperature and Battery Cycles. Our batteries have the most improvements over time in both form and function.
[INVERTER COMMUNICATION]
All SPECIALIZED 24V and 48V lithium batteries connect via CANBUS or RS485 with top inverter brands such as Sol Ark, Growatt, SMA and Schneider. The inverter will read the SOC Information from the battery in real-time and then adjust the corresponding Charging and Alarm according to; the different SOC states, Forced Shutdowns, Fault Protections, Power On, etc.
[BETTER PARTS & ACCESSORIES]
Low Temp and High Temp Shutdown Protection
SMART BMS with Communication via RS485
Rugged Front Mount Screw in Terminals
[CUSTOM BATTERY EXPERTS]
We SPECIALIZE in custom battery case designs for any application. You can also choose Discharge Current (up to 2C) and Charge Current, terminal size, style and location. Email sales@specializedpower.net for a free consultation with the top custom Sales Engineer in the lithium battery industry with over 13 years experience. Let’s discuss your project or application. We will maximize your space and offer a complimentary sketch with final dimensional drawing to confirm after order is placed, before production begins.
[THE MOST BATTERY CASE OPTIONS]
[SECURE CHECKOUT]
Checkout now using our HTTPS cart via paypal for a fully guaranteed and secure transaction. This is the safest way to buy anything online. We also accept BTC, Company Checks and Wire Transfer for Business Customers.
[LOW PRICE GUARANTEE]
Specialized Power will beat any US Seller price on comparable 15kW, 30kWh and 60kWh lithium battery systems
The Decision is Easy! We have The Right Battery at The Right Price. SPECIALIZED for your application.
Email: sales@specializedpower.net
Text: 855-543-3704
[BENEFITS OF LITHIUM]
Lithium batteries offer stable performance with superior life cycles when compared to Lead Acid, AGM or Gel batteries, Lithium batteries are only 3 times the cost of AGM batteries but offer nearly 10 times the life cycles and require zero maintenance. Specialized Power System Batteries are the Best LIFEP04 Lithium Batteries in the world at the lowest price possible. Constructed using top quality 3.2V Prizmatic Lithium Cells. All of our batteries are guaranteed to be constructed with superior quality.
