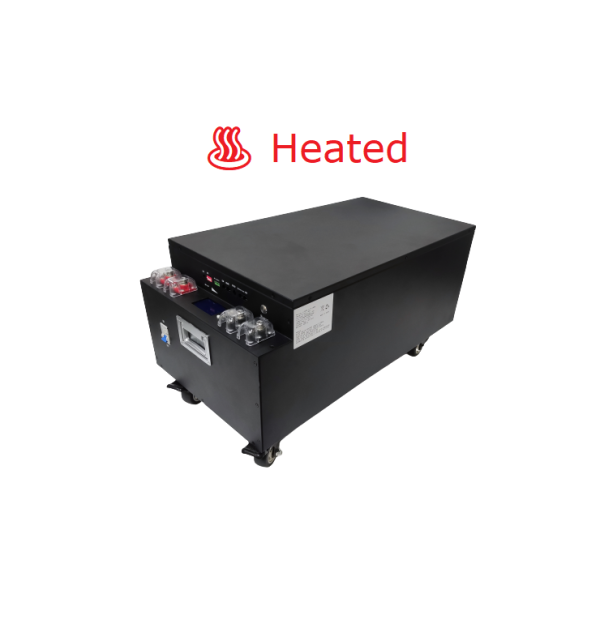

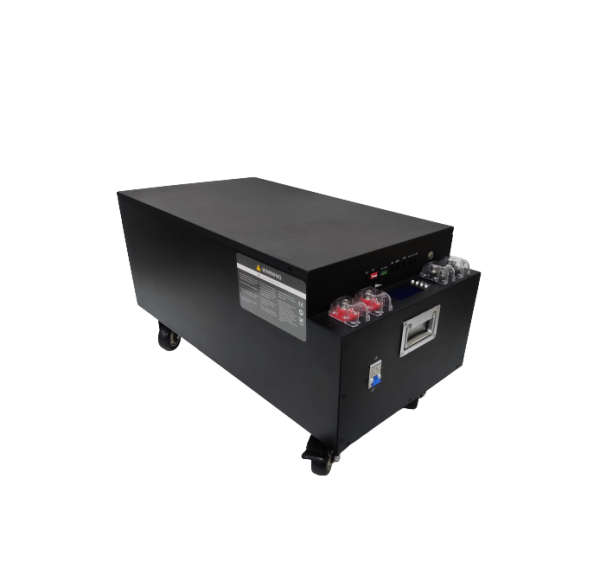

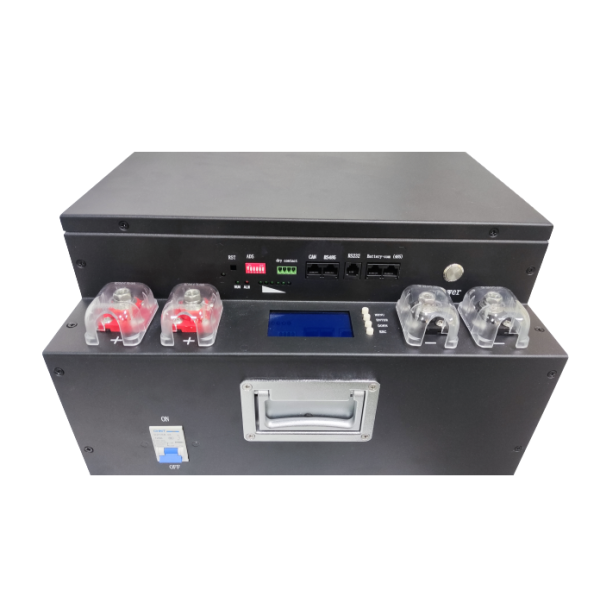

48 Volt 280 Amp Hour Lithium LIFEP04 Battery, Single Battery with dimensions of 655mm x 385mm x 385mm, 100A Continuous Discharge, 100A Max Input Charge (per battery), This 48 Volt 280 Amp Hour Battery is constructed using 3.2V LIFEP04 Cells, True 280AH Rating at 51.2V, 14.35kWH of stored energy, Lithium batteries offer stable performance for RVs, Campers, Boats and Battery Based Solar Systems. Imported, Freight Item, due to the weight of this battery please allow 45-50 days for delivery, custom cases available
HEATING FUNCTION

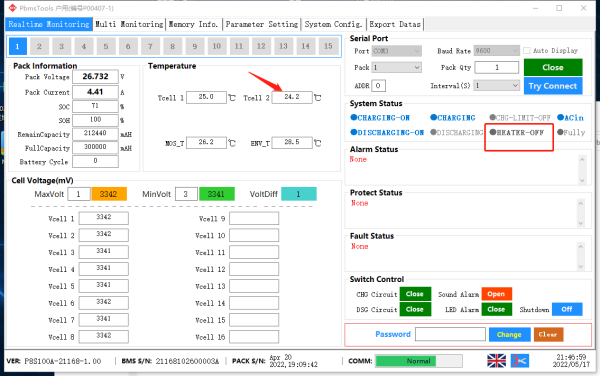

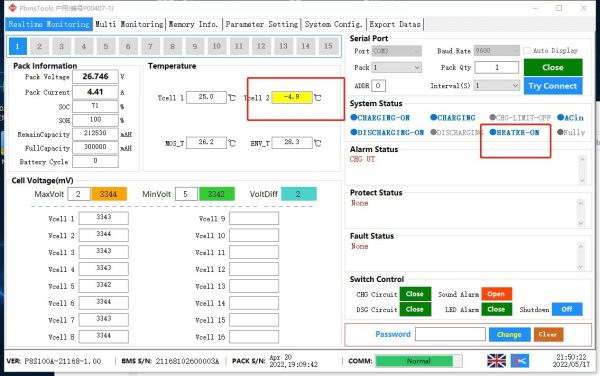

This 51.2V 280 Ah Lithium Battery is equipped with an optional intelligent internal heater module in the metal case. This heating function will automatically activate when ambient temperature of the battery reaches freezing or sub-freezing = 0°C or 32°F, ensuring the battery’ environment stays warm enough for safe charging. The Heating Module draws just 35 Watts with a working voltage range of 8.8V to 15V and working current of 3 Amp to 5 Amp. When the batteries detects that the ambient temperature is lower than 0°C/32°F, then BMS will turn on the heating function if BMS of the battery detects power supply from Charger/Solar/Generator. If no charge source is detected, the heater module stays off. When the battery temperature gets to 10°C/50°F, the heating function will turn off and the battery can be recharged normally.
Steps to Connect:
1. Plug the USB to laptop, there will be operation instruction to download a drive on the PC or Laptop.
2. Install the software package (zip file) “BMStools” on the laptop. You can download it below (zip file) or It will be sent via email.
3. Unzip it and run the application “PbmsTools V2.5FN”
4. Turn the battery on, plug another side of the communication box to the battery
5. Check the data from the software box and you will view the charge/discharge/temp information.
COMPATIBLE WITH
Growatt (via RS485), GoodWE, Schneider, SMA and Sol-Ark (via CAN)
Our Rack Style Lithium Batteries can now Communicate directly with many popular inverters. The battery connects via ES485 or Canbus using the cable provided. The inverter will read the SOC Information from the battery in real-time and then adjust the corresponding Charging and Alarm according to; the different SOC states, Forced Shutdowns, Fault Protections, Power On, etc
WHY CHOOSE SPECIALIZED POWER?
[SCALABLE]
Our batteries were engineered by the best and most experience battery engineers in the world and are the building block for your battery system, fewer batteries mean fewer connections with less efficiency loss and fewer potential fail points. Our battery solutions have the most improvements over time and are much better than stacking a bunch of inferior 100A batteries and trying to keep all those BMS in sync! A 30kWh Battery System using Specialized Batteries battery will require only TWO batteries, instead of 6 or more like competing brands. It’s a no brainer!
[TOP NAME-BRAND CELLS]
The most important part of your lithium battery investment is the battery cells; we use bankable brands with warranty that can be honored anywhere in the world that you can really count on many years ahead. Beware of competitors using generic components that give long term warranties that are still unproven. Count on SPECIALIZED batteries with CATL, EVE and CALB cells inside. These top brands usually carry UL Certificates and their own warranty from the manufacturer.
[SUPERIOR BMS]
The Smart BMS in all Specialized Power Batteries offers easy PC Connectivity (cable and program included) for troubleshooting and monitoring. The BMS Protects from Over-Charging, Over-Discharging, Overload, Short-Circuit, General Overload and Low/High Temperature Protection. If there is any problem with your battery its easy to connect and find the EXACT cell causing an issue making Specialized Batteries easy to service. The BMS PROGRAM shows Battery capacity, Battery Voltage, Battery current (Amps), Battery State of Charge (SOC), Battery state of Health (SOH), Battery Status, Individual Cell Voltage, Temperature and Battery Cycles. Our batteries have the most improvements over time in both form and function.
[INVERTER COMMUNICATION]
All SPECIALIZED 24V and 48V lithium batteries connect via CANBUS or RS485 with top inverter brands such as Sol Ark, Growatt, SMA and Schneider. The inverter will read the SOC Information from the battery in real-time and then adjust the corresponding Charging and Alarm according to; the different SOC states, Forced Shutdowns, Fault Protections, Power On, etc.
[BETTER PARTS & ACCESSORIES]
Low Temp and High Temp Shutdown Protection
SMART BMS with Communication via RS485
Rugged Front Mount Screw in Terminals
[CUSTOM BATTERY EXPERTS]
We SPECIALIZE in custom battery case designs for any application. You can also choose Discharge Current (up to 2C) and Charge Current, terminal size, style and location. Email sales@specializedpower.net for a free consultation with the top custom Sales Engineer in the lithium battery industry with over 13 years experience. Let’s discuss your project or application. We will maximize your space and offer a complimentary sketch with final dimensional drawing to confirm after order is placed, before production begins.
[THE MOST BATTERY CASE OPTIONS]
[SECURE CHECKOUT]
Checkout now using our HTTPS cart via paypal for a fully guaranteed and secure transaction. This is the safest way to buy anything online. We also accept BTC, Company Checks and Wire Transfer for Business Customers.
[LOW PRICE GUARANTEE]
Specialized Power will beat any US Seller price on comparable 15kW, 30kWh and 60kWh lithium battery systems
The Decision is Easy! We have The Right Battery at The Right Price. SPECIALIZED for your application.
Email: sales@specializedpower.net
Text: 855-543-3704
[BENEFITS OF LITHIUM]
Lithium batteries offer stable performance with superior life cycles when compared to Lead Acid, AGM or Gel batteries, Lithium batteries are only 3 times the cost of AGM batteries but offer nearly 10 times the life cycles and require zero maintenance. Specialized Power System Batteries are the Best LIFEP04 Lithium Batteries in the world at the lowest price possible. Constructed using top quality 3.2V Prizmatic Lithium Cells. All of our batteries are guaranteed to be constructed with superior quality.
